- In the Network Simulator series, before I explained about EVE-NG installation & setup, today, I will explain about H3C Simulator software LAB practice on their Switch, Router, Firewall & server, etc.
- Same as in other vendors like Cisco Packet tracer, GNS3 & Huawei ENSP, HCL (H3C Cloud LAB) is used for H3C products.
Interview Questions:
- What is the name of the OS used in H3C Product?
- What are the switch models of H3C used in the enterprise?
- What are the Router models of H3C?
- What is the latest series of H3C SecPath Firewalls?
Below queries will be covered
- Account Registration on H3C Web portal
- How to download H3C Simulator HCL?
- Installation of HCL
- HCL basic guidance to setup LAB
- Configurations CLI of H3C switch & Router, Firewall
First, let’s talk about H3C website login & account registration, if your company is already a partner of H3C then there will be one administrator account called Partner Administrator which manages Company business & sub-accounts.
For the employee & engineer, there are sub-accounts for e-learning & software downloading, etc.

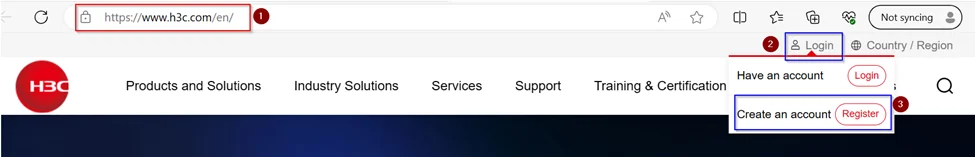

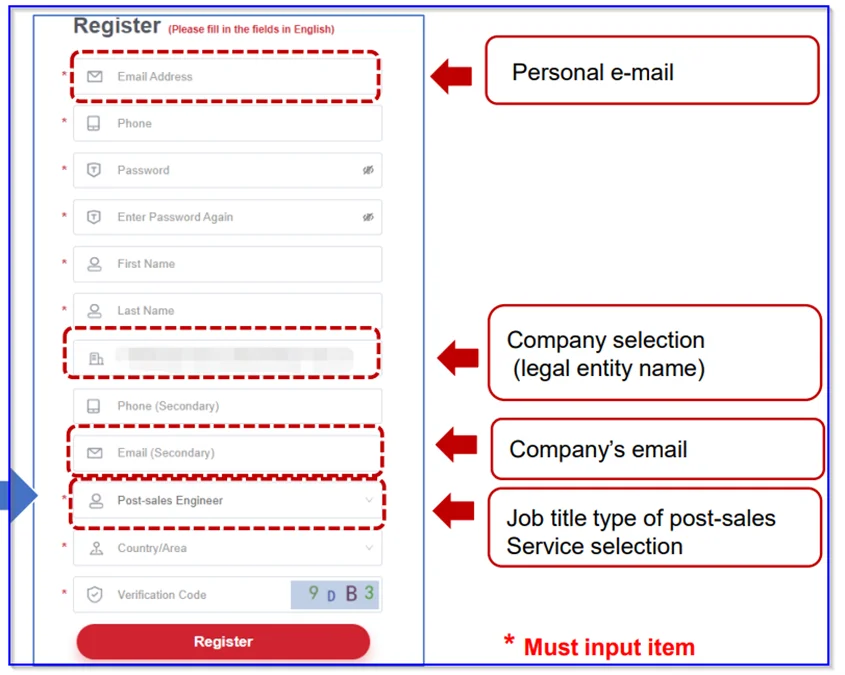

Just click on the below link then click on register and fill in the required information.
Link for account registration: https://www.h3c.com/en/
After filling in the above details & submitting, you will receive one link in your email, click on
that & for the linking your account with your company account by searching company name, confirm & submit.
The next step is to ask the manager who has your company administrator account to approve.
After account registration let’s move to the e-learning & software downloading step.

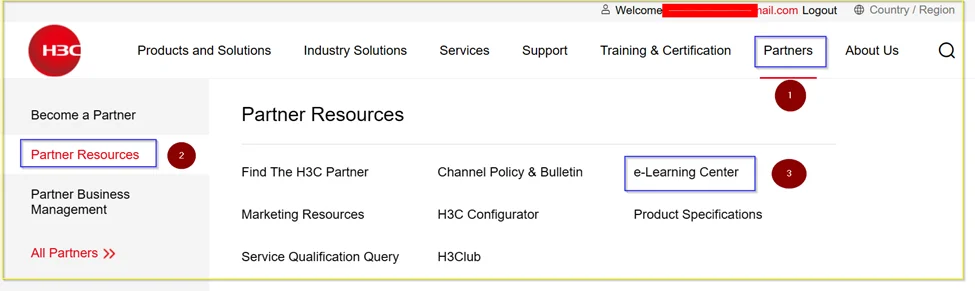

Click on partners –> Partner Resources –> e-Learning Center
Below are all product videos & training i-e Routing, switching & security, etc.
For the LABs portion first download the HCL Simulator

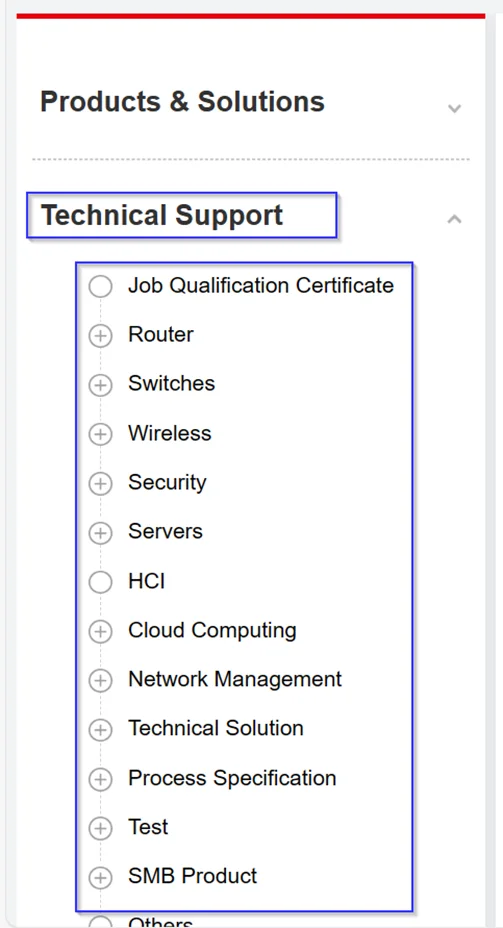

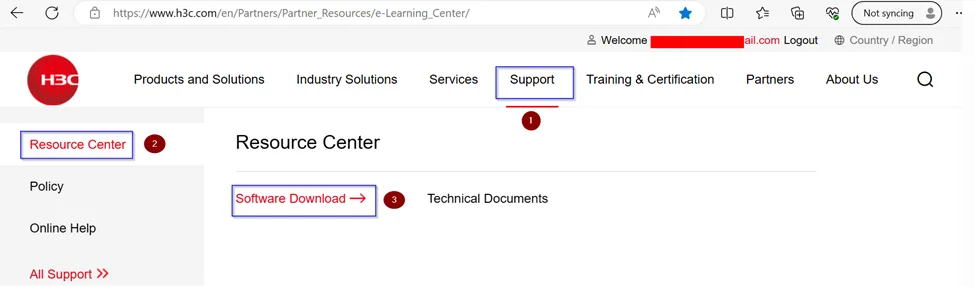

Go-to Support –> Resource Center –> Software Download

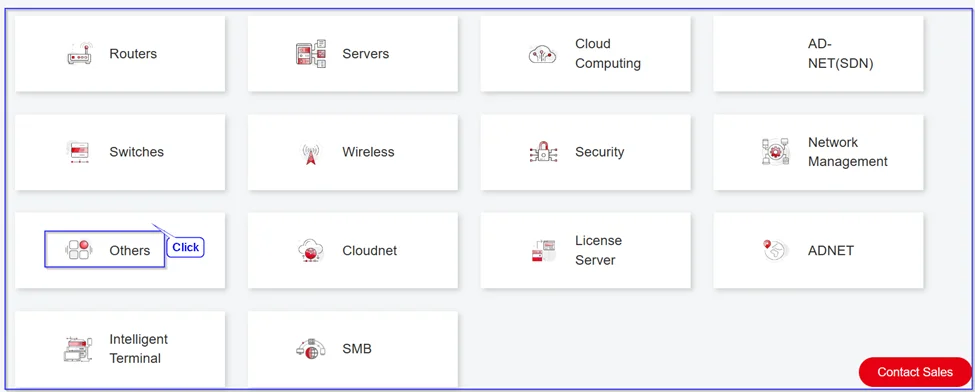

Click on others

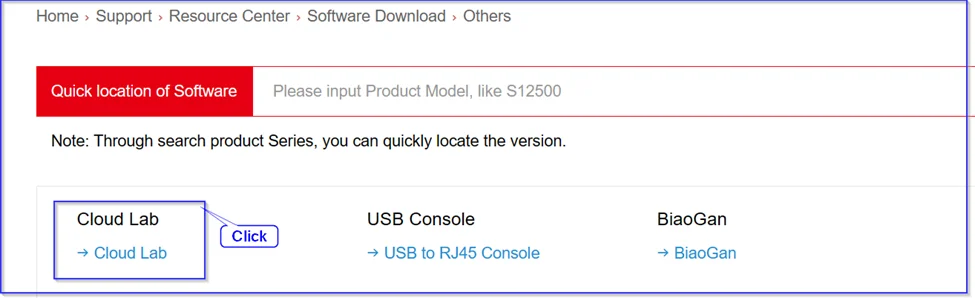

Click on Cloud Lab
Different versions are available current latest version is 5.9.0 But, on the portal, v5.5.0 is uploaded
When downloading is completed double-click on the setup file.

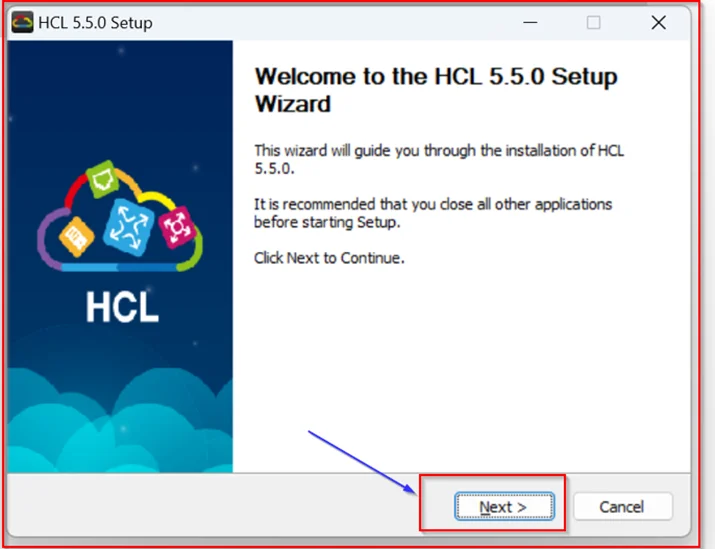

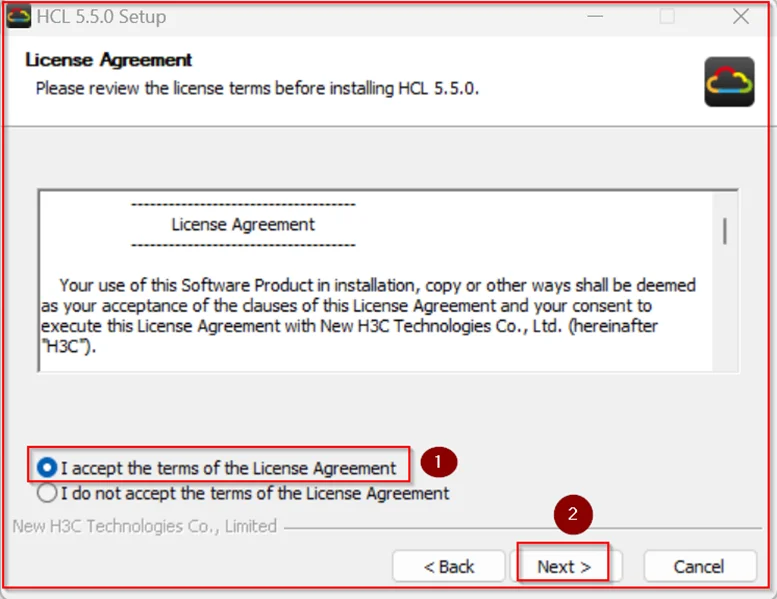

Next

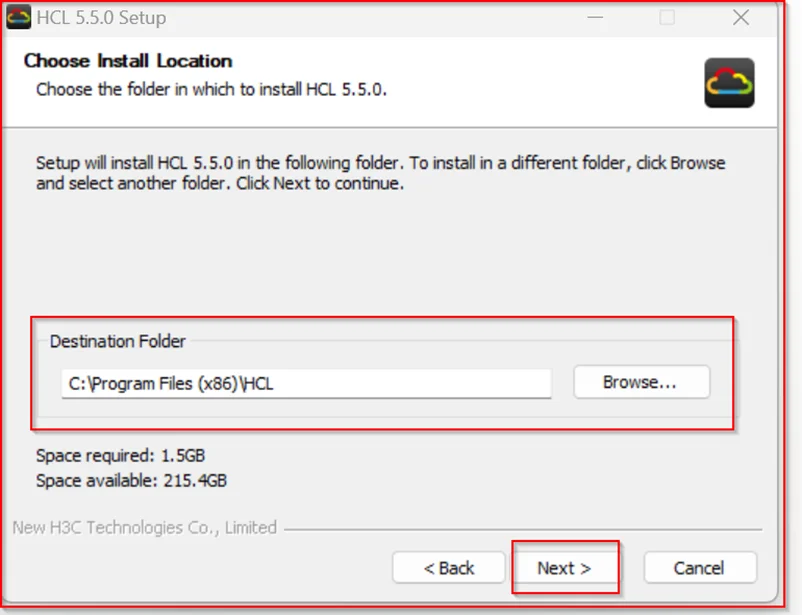

Select the location in your PC/Laptop where to install by clicking on Browse in my case I will install C drive as the default selected

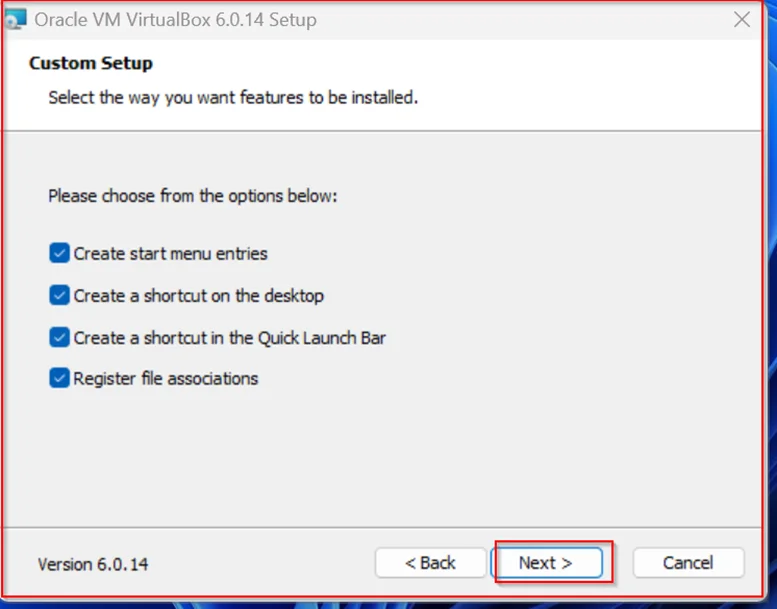

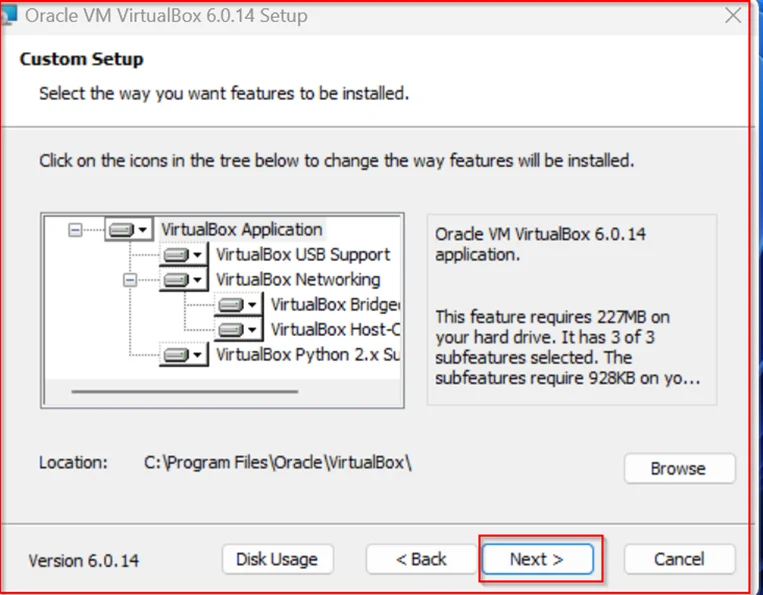

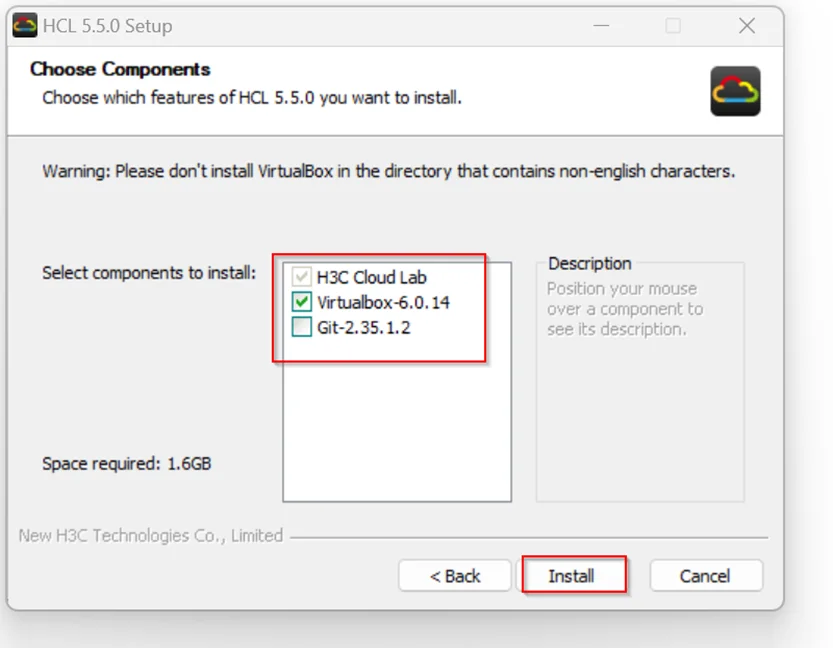

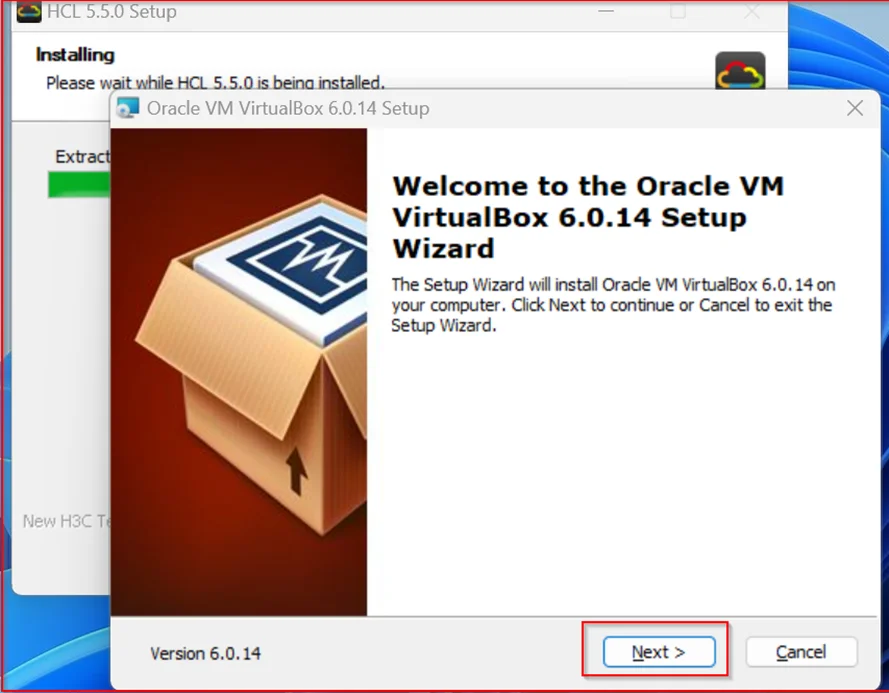

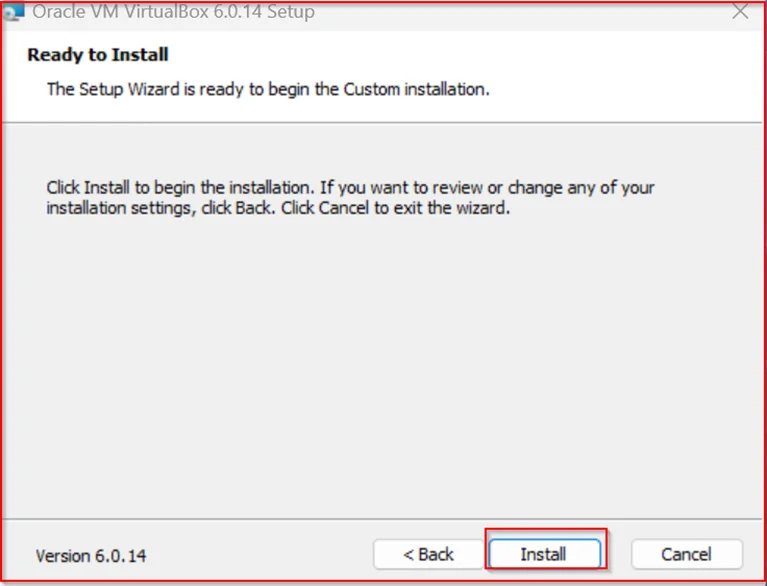

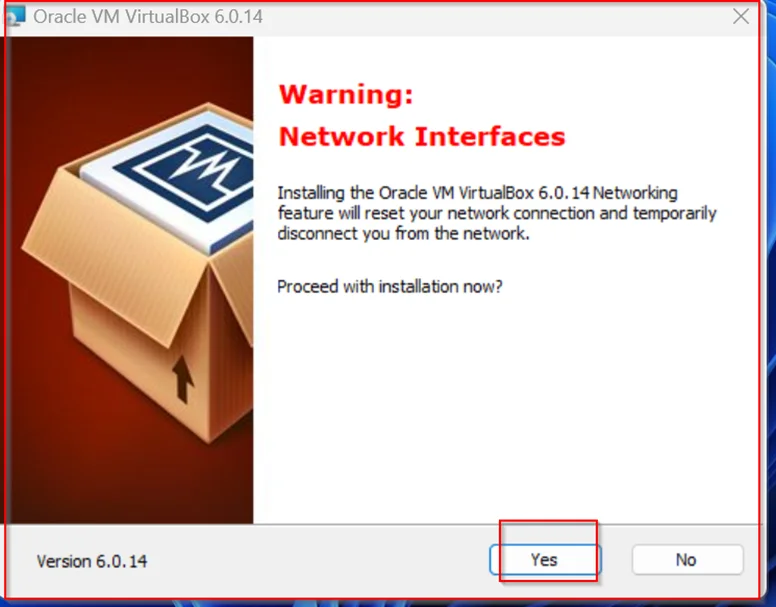

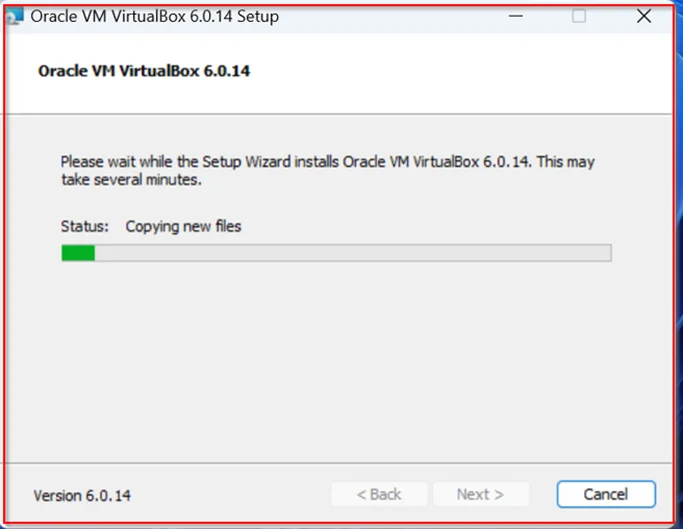

For the HCL, Virtual Box installation is mandatory, automatically it will give you a prompt to Download just click on install.

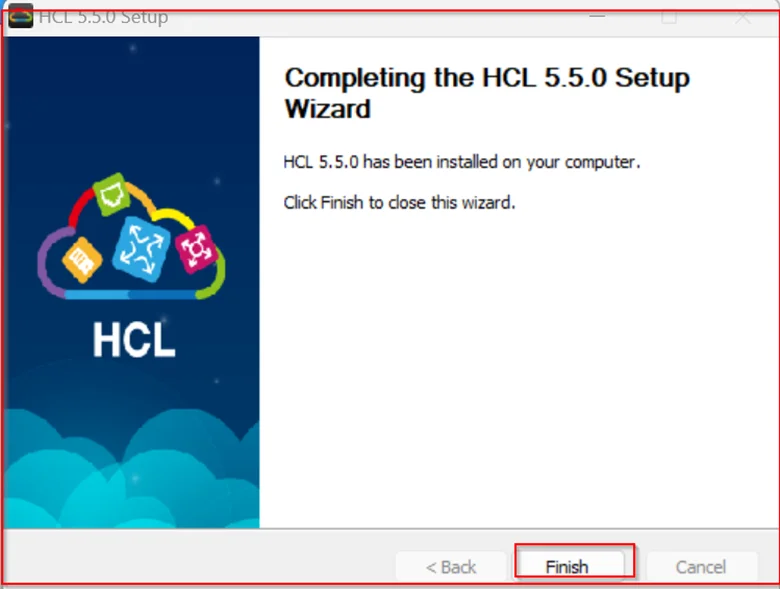

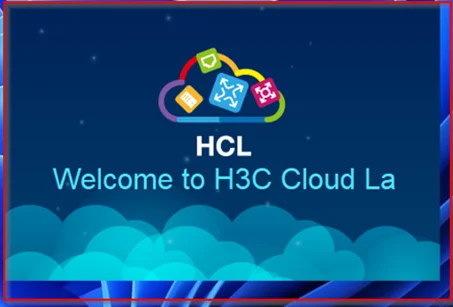

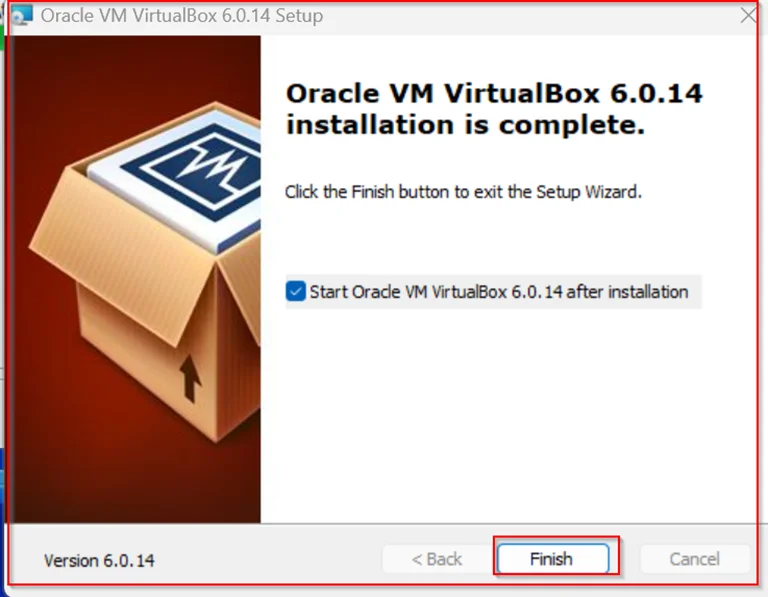

After all the above steps just close the virtual box & open HCL

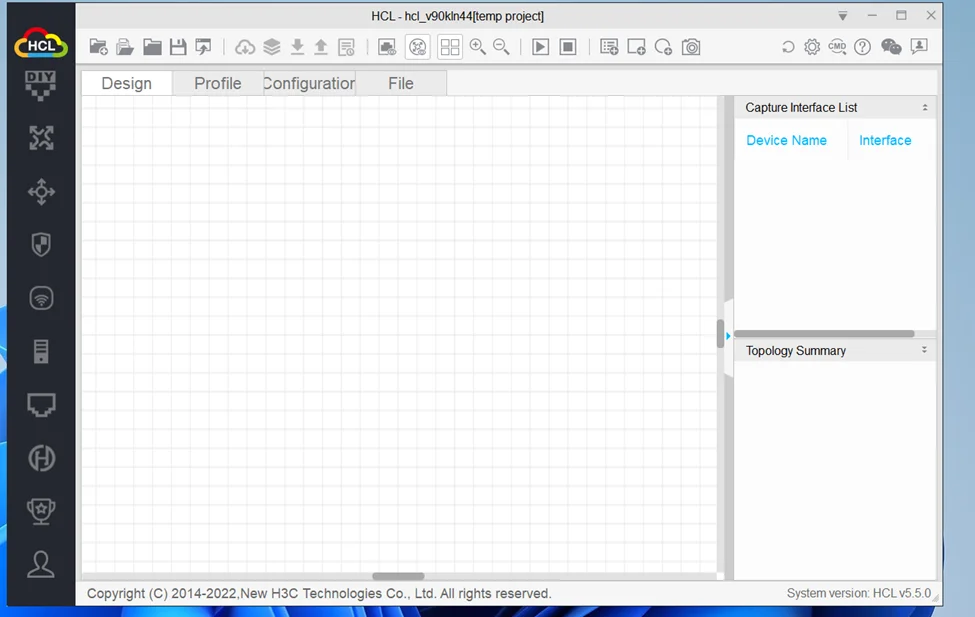

Below is the Graphical interface of HCL

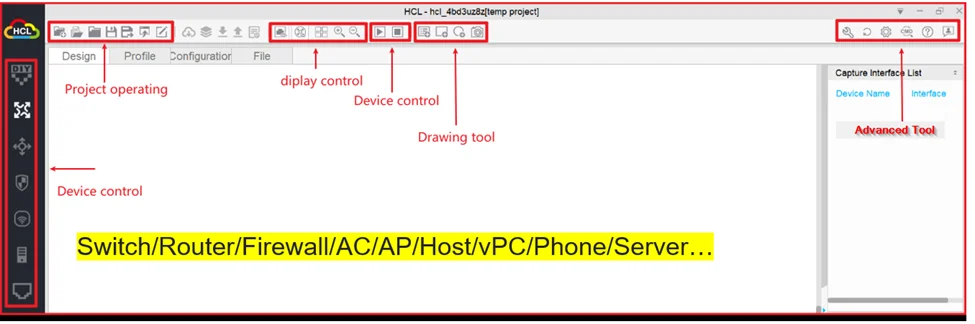

Different portions of the GUI interface for LAB setup.

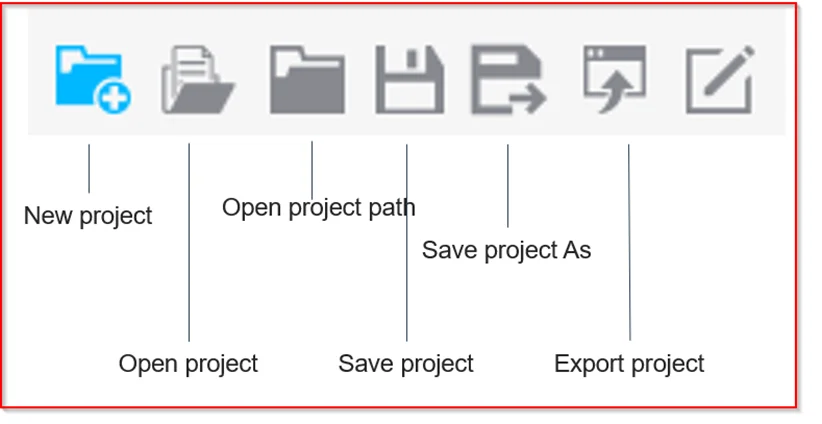

To open/save project

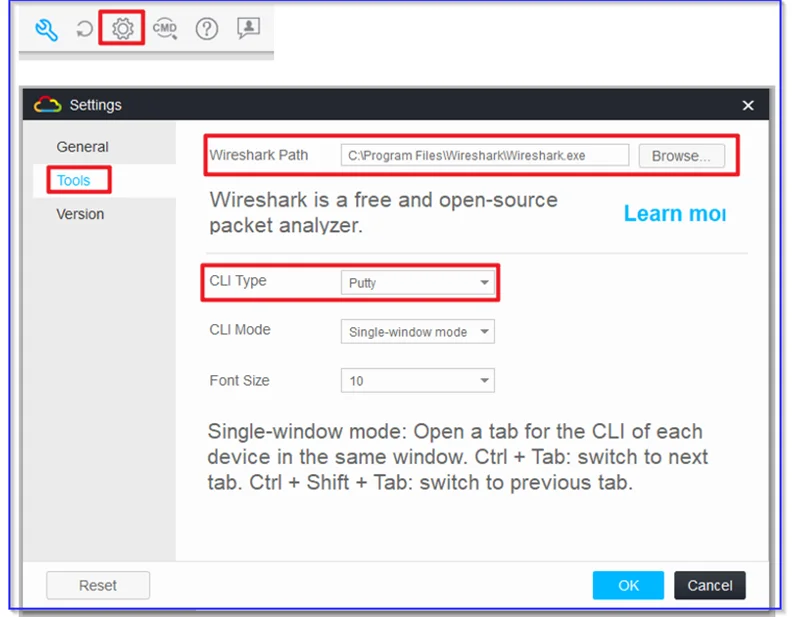

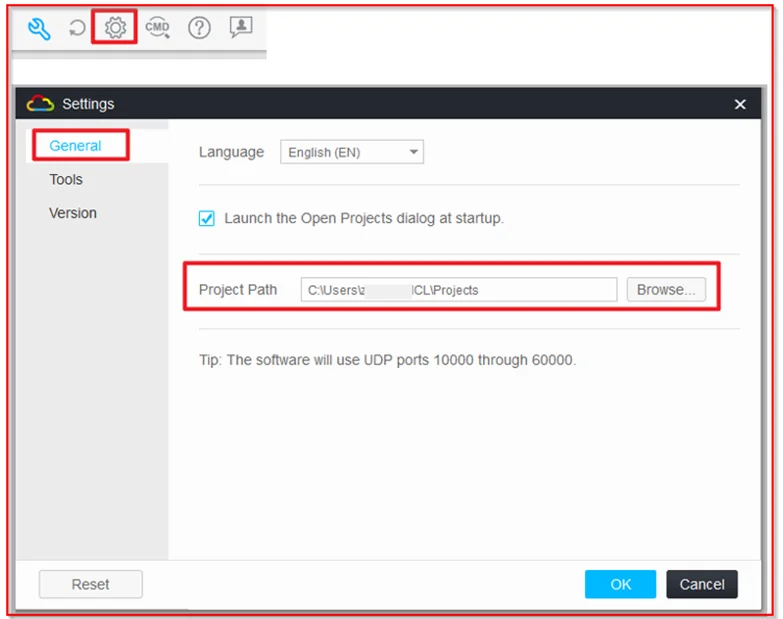

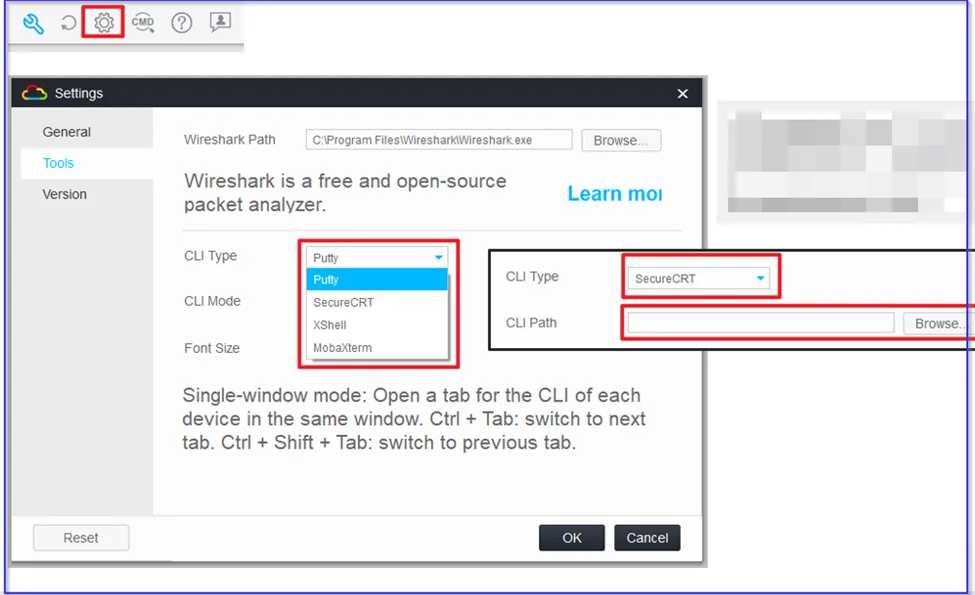

You can select terminal software default is putty for CLI of devices.

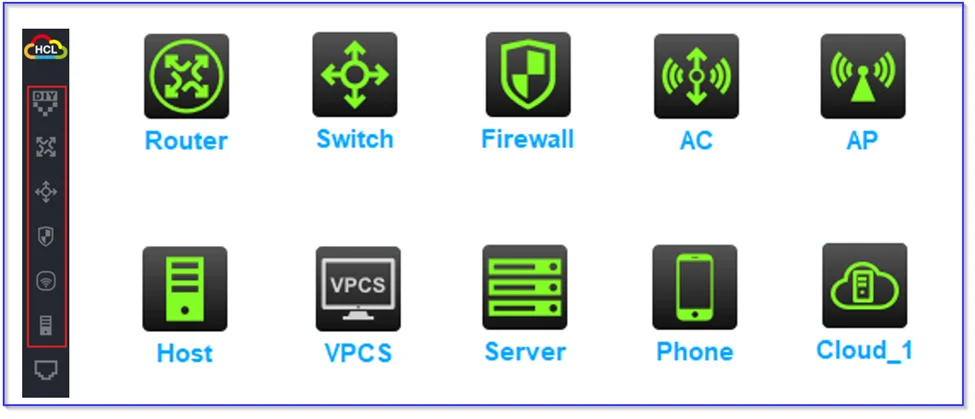

All products available in HCL, left vertical bar

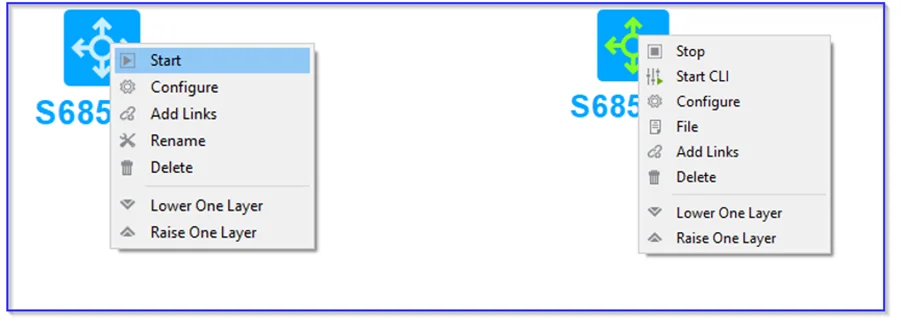

Right click on device then start/stop

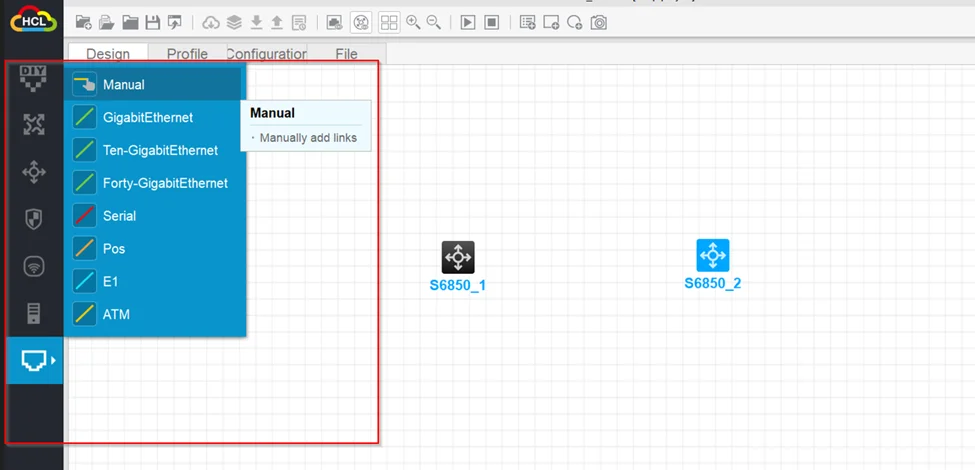

Interface connectivity between devices

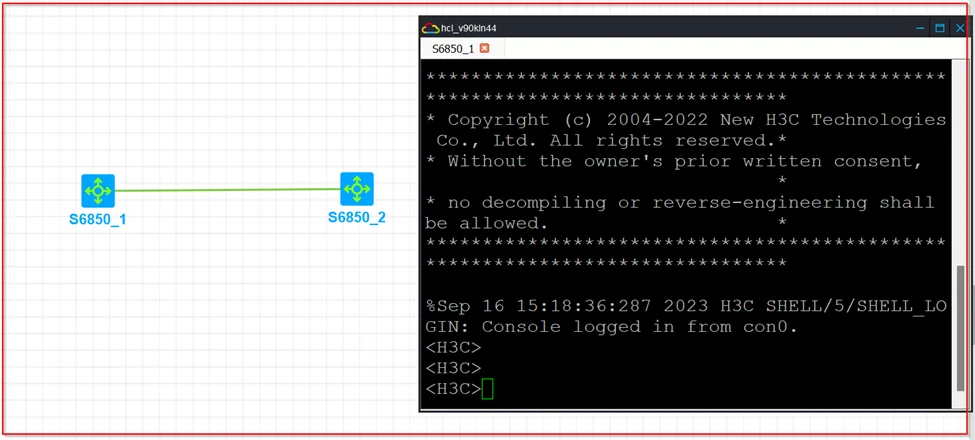

After starting devices double click on the node it will open CLI
The commands of H3C are almost the same with Huawei .
Below
is the configurations template
To change Hostname:

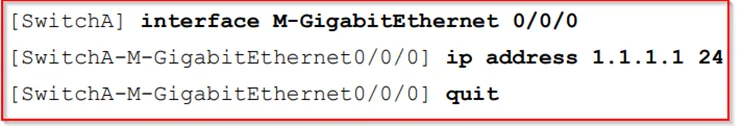

Assign IP Address to interface

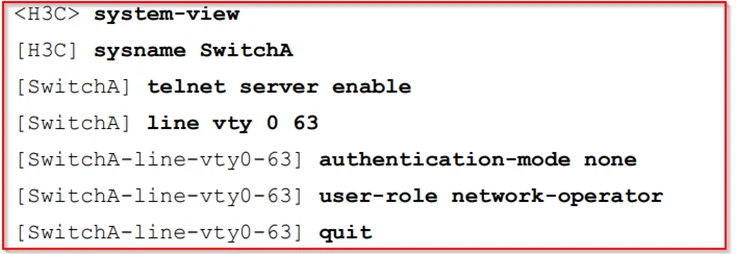

Telnet configurations:
If still you have any confusion, write a comment or send me an email, and I will support you.
Below step-by-step link for the EVE-NG multi-vendor installation
https://www.readteknology.com/2023/06/EVE-NG-Setup-and-VMWare-installation.html
