H3C Firewall initialization, version upgrade, HA & Failover SecPath F5000

H3C Firewall HA/RBM–Explained in Video

CLI Access:

I have connected my laptop directly to firewall with console cable, default management IP address (192.168.0.1/24) configured on GE1/0/0 interface.

Default username & password is admin/admin

Port GE1/0/0 is combo port & fibre enable by default, what this means let me explain


Combo port:

combo port means it’s one logical port but connected to two physical connectors inside circuit board one with RJ45 & another with Optical SFP connector. You can use anyone just enable that feature under interface.

In H3C firewall fiber is enable under combo port means if you connect UTP cable it will not work , need to enable copper first.

GUI Access:

LAN cable is connected now let’s access through GUI ,

In browser https://192.168.0.1 , default username & password is admin/admin

Change the password in first attempt than click on apply.

Just check & click yes if you want to quick review configuration Wizard page otherwise click No.

Choose the firewall access mode , there are two mode Routing & transparent ,default is Routing mode, I am just leaving the default setting & click on Dashboard.

This is the main GUI Dashboard, on top horizontal there are Monitor, policies, Objects , Network & system options.

In H3C SecPath F5000 Firewall no any default policy configured, as in Fortinet firewall there is Implicit allow any-any  from LAN → WAN

Click on Network & check interfaces details, as GE1/0/0 is by default in management zone

H3C Firewall Zone:

There are five zone in H3C SecPath F5000 . Local,trust,DMZ,Untrust & Management zone.

Version Upgrade:

Let me show you version upgrade but before upgrade check some basic configurations & security policy, especially if you are accessing through non-management interface, for management GE1/0/0 mostly things already allowed by default.

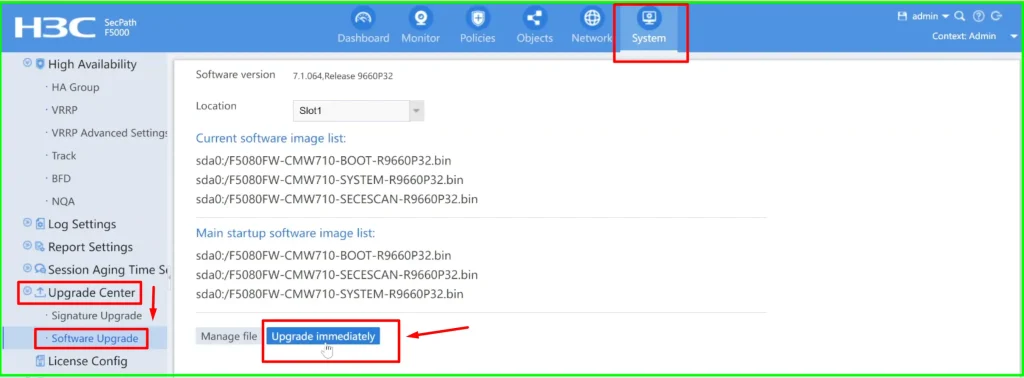

Go to System–> upgrade center–>software upgrade–>upgrade immediately

Select & upload the latest version file

File has uploaded –> click Ok

It will take 20 to 40 minutes or maybe less, don’t remove LAN cable during this time

Wait till completion

During rebooting connection will be disconnected just wait & reload browser

Version has been upgraded

High availability (HA) | Remote backup management (RBM):

Let me configure Firewall HA in H3C called RBM, before that some basic configuration

Primary Firewall Configuration:

Aggregation link b/w two firewall will use for HA/RBM communications

Create Zone & security policy &  add interface as per diagram

Configure track on interface, if the track link down then failover the primary firewall to secondary

Configure remote group for HA/RBM & track configuration

Run below command to check firewall status

#Remote-backup-group status

Management role is primary & running status is Active

Secondary  Firewall Configuration:

Interface & zone configuration is same but in remote backup group few commands are different as below

After execution these command you will notice that for primary & secondary their P & S letter in cli for representation. (Primary & Secondary).

Check the secondary firewall status

Management role is Secondary & running status is Standby

NOTE:

After HA/RBM establishes the CLI will not same means primary firewall have different & secondary firewall have different cli.there is no single cli like in Fortinet.

After running above command the HA will establish & track is used for failover like if the track interface has down then the primary firewall will be secondary & secondary will be primary.

Switchover/failover of H3C firewall:

I have experienced different method of H3C Firewall switchover below

Track interface Down switchover:

If anyone or both track 1/2 means XGE1/1/2 or XGE1/1/3 interface goes down than the firewall running active status will change from primary to secondary firewall.


In track interface goes down all traffic will shift means 100% traffic.

Manual switchover through command:

There is one command under remote back group for manual switchover as below

#Switchover request

Run above command then yes

Running status of primary Firewall has been change to standby from Active

After running this command I observed that almost half 50% traffic shifting & its changing because its logical switchover just for testing.

HA/RBM Link goes down:

As per my experience in one project when shutting down the RBM/HA link then both firewall become primary & active status but the traffic is going on that old primary firewall before shut the HA port as the session is active there & the traffic will continue on that old path not shifting.

Compare HA with Fortinet:

There are multiples different points but I mentioned only three below.
